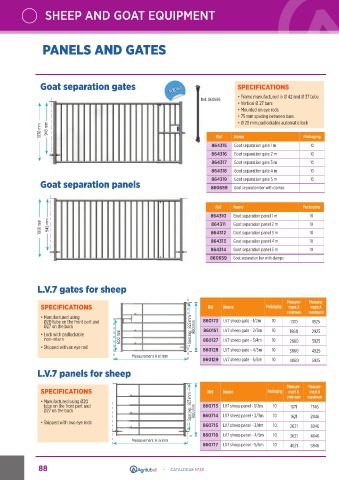

Page 88 - agritubel-catalogue

SHEEP AND GOAT EQUIPMENT

PANELS AND GATES

Goat separation gates SPECIFICATIONS
• Frame manufactured in Ø 42 and Ø 37 tube
Ref. 860659
• Vertical Ø 27 bars
• Mounted on eye rods
• 75 mm spacing between bars

• Ø 28 mm padlockable automatic lock
1030 mm 945 mm Ref Name Packaging

864315 Goat separation gate 1 m 10
864316 Goat separation gate 2 m 10
864317 Goat separation gate 3 m 10
864318 Goat separation gate 4 m 10
864319
Goat separation panels 860659 Goat separation gate 5 m 10
Goat separation bar with clamps

Ref Name Packaging
864310 Goat separation panel 1 m 10
1030 mm 945 mm 864312 Goat separation panel 2 m 10
864311
10
Goat separation panel 3 m
864313 Goat separation panel 4 m 10
864314 Goat separation panel 5 m 10
860659 Goat separation bar with clamps

L.V.7 gates for sheep

Measure- Measure-
SPECIFICATIONS Ref Name Packaging ment A ment A
minimum maximum
• Manufactured using
Ø20 tube on the front part and 860173 LV7 sheep gate - 1/2m 10 1310 1825
Ø27 on the back 900 mm
• Lock with padlockable Spacing: 823 mm 860151 LV7 sheep gate - 2/3m 10 1860 2925
non-return 600 mm 860127 LV7 sheep gate - 3/4m 10 2860 3925
• Shipped with an eye rod 860128 LV7 sheep gate - 4/5m 10 3860 4925

Measurement A in mm
860129 LV7 sheep gate - 5/6m 10 4860 5925
L.V.7 panels for sheep

SPECIFICATIONS Ref Name Packaging Measure- Measure-
ment A
ment A
• Manufactured using Ø20 minimum maximum
tube on the front part and Spacing: 823 mm 860713 LV7 sheep panel - 1/2m 10 1071 1746
Ø27 on the back 900 mm 860714 LV7 sheep panel - 2/3m 10

• Shipped with two eye rods 1621 2846
860715 LV7 sheep panel - 3/4m 10 2621 3846
860716 LV7 sheep panel - 4/5m 10 3621 4846
Measurement A in mm
860717 LV7 sheep panel - 5/6m 10 4621 5846

88 - CATALOGUE N°33
