CATTLE LOCKING YOKES & SELF SERVICE FEEDERS

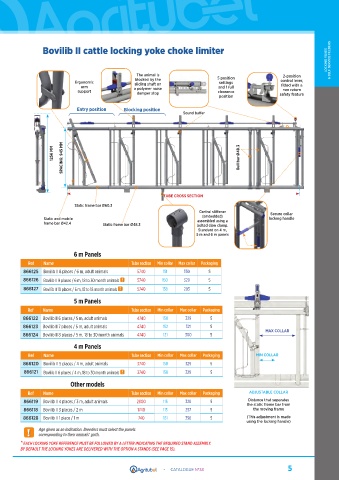

Bovilib II cattle locking yoke choke limiter
LOCKING YOKES & SELF SERVICE FEEDERS

The animal is 2-position
blocked by the 5 position control lever,
Ergonomic sliding shaft on settings
arm a polymer noise and 1 full fitted with a
support damper stop clearance non return
position safety feature
Entry position Blocking position
Sound buffer

SPACING: 945 MM Bull bar Ø48.3
1256 MM

TUBE CROSS SECTION
Static frame bar Ø60.3
Central stiffener Secure collar
(embedded)
Static and mobile assembled using a locking handle
frame bar Ø42.4 Static frame bar Ø48.3 bolted claw clamp.
Standard on 4 m,
5 m and 6 m panels

6 m Panels
Ref Name Tube section Min collar Max collar Packaging
866125 Bovilib II 8 places / 6 m, adult animals 5740 151 330 5
866126 Bovilib II 9 places / 6 m, 18 to 30 month animals ! 5740 150 329 5
866127 Bovilib II 10 places / 6 m, 12 to 18 month animals ! 5740 138 293 5
5 m Panels
Ref Name Tube section Min collar Max collar Packaging
866122 Bovilib II 6 places / 5 m, adult animals 4740 150 329 5
866123 Bovilib II 7 places / 5 m, adult animals 4740 152 321 5
MAX COLLAR
866124 Bovilib II 8 places / 5 m, 18 to 30 month animals 4740 121 300 5
4 m Panels
Ref Name Tube section Min collar Max collar Packaging MIN COLLAR
866120 Bovilib II 5 places / 4 m, adult animals 3740 150 329 5
866121 Bovilib II 6 places / 4 m, 18 to 30 month animals ! 3740 150 329 5
Other models

Ref Name Tube section Min collar Max collar Packaging ADJUSTABLE COLLAR
866119 Bovilib II 4 places / 3 m, adult animals 2800 115 328 5 Distance that separates
the static frame bar from
866118 Bovilib II 3 places / 2 m 1740 113 257 5 the moving frame
866128 Bovilib II 1 place / 1 m 740 181 356 5 (This adjustment is made
using the locking handle)
! Age given as an indication. Breeders must select the panels
corresponding to their animals’ girth.
* EACH LOCKING YOKE REFERENCE MUST BE FOLLOWED BY A LETTER INDICATING THE REQUIRED STAND ASSEMBLY.
BY DEFAULT THE LOCKING YOKES ARE DELIVERED WITH THE OPTION A STANDS (SEE PAGE 15).
